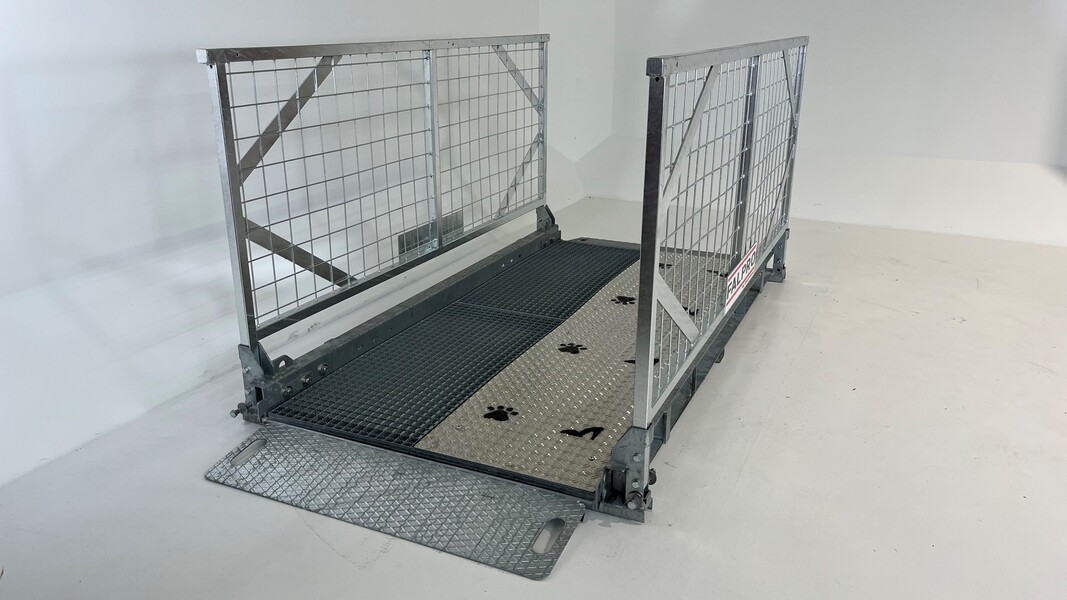

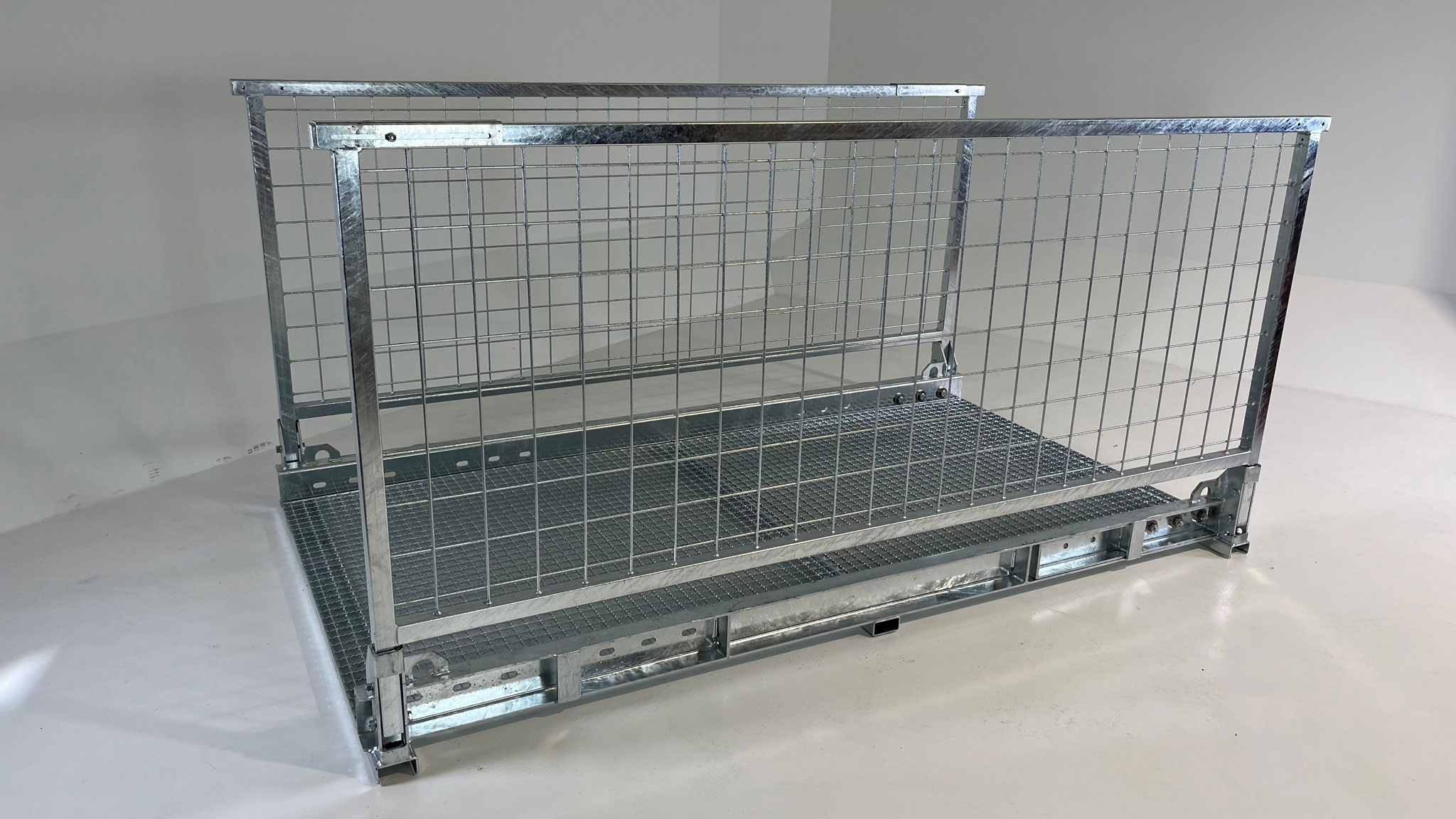

The Falpro Multipurpose Bridge is a flexible, modular bridging system designed that offers high load capacity, modular expandability, and versatile accessories, making it a reliable and adaptable solution for temporary access and crossing applications and varied terrain. It can be deployed in locations such as construction areas, emergency response situations (like floods or landslides), roadwork zones, public events, exhibitions, and more. It can span up to 13.0 meters using 2.50 m and 1.25 m modules without additional supports. For configurations with more than four connected sections, an aluminum profile beam provides reinforcement. Foldable guard rails allow compact transport and stacking of multiple modules. The bridge supports 400 kg/m², with a maximum total load capacity of 600 kg for the complete structure. Its modular design makes it fully customizable to suit diverse project needs. Falpro Bridge Deck Corner Modules enable curved layouts, each providing a 30° angle, allowing 60° or 90° turns when combined. These corner modules can be installed on either the left or right side.
For a High Clearence bridge —such as temporary road crossings—the bridge can be extended indefinitely using Falpro Load Bearing Towers. For a Low Clearance Bridge up to 70 cm, including stream crossings or minor uneven terrain, Falpro Spindle Feet are used, with a maximum 10.00 m distance between supports. The bridge can also be secured with an adjustable crane connection set, while a pendulum compensator with a wheel on the building side absorbs crane-induced movements.
Additional accessories enhance safety and accessibility the Falpro Multipurpose Bridge Cover Plate creates a flat, secure walking surface over the grating, improving comfort for pedestrians, high-heeled footwear, dogs, and animals. The Falpro Multipurpose Bridge Drag Plate provides a smooth ramped transition, improving accessibility for pedestrians, wheelchair users, and wheeled equipment.
Article No. : 71001
Total Length : 2,50 m
Total Width : 1,50 m
Total Height : 1,24 m
Usable Area : 1,26 x 2,50 m
Dead Weight : 215,00 kg
Up to four bridge modules—each 2.5 meters in length—can be connected without requiring extra support structures, offering outstanding adaptability and ease of installation.
Article No. : 71201
Total Length : 1,25 m
Total Width : 1,50 m
Total Height : 1,24 m
Usable Area : 1,26 x 1,25 m
Dead Weight : 115,00 kg
The Multipurpose Bridge can span distances of up to 15.0 meters using modular elements of 2.50 m and 1.25 m.
Article No. : 71005

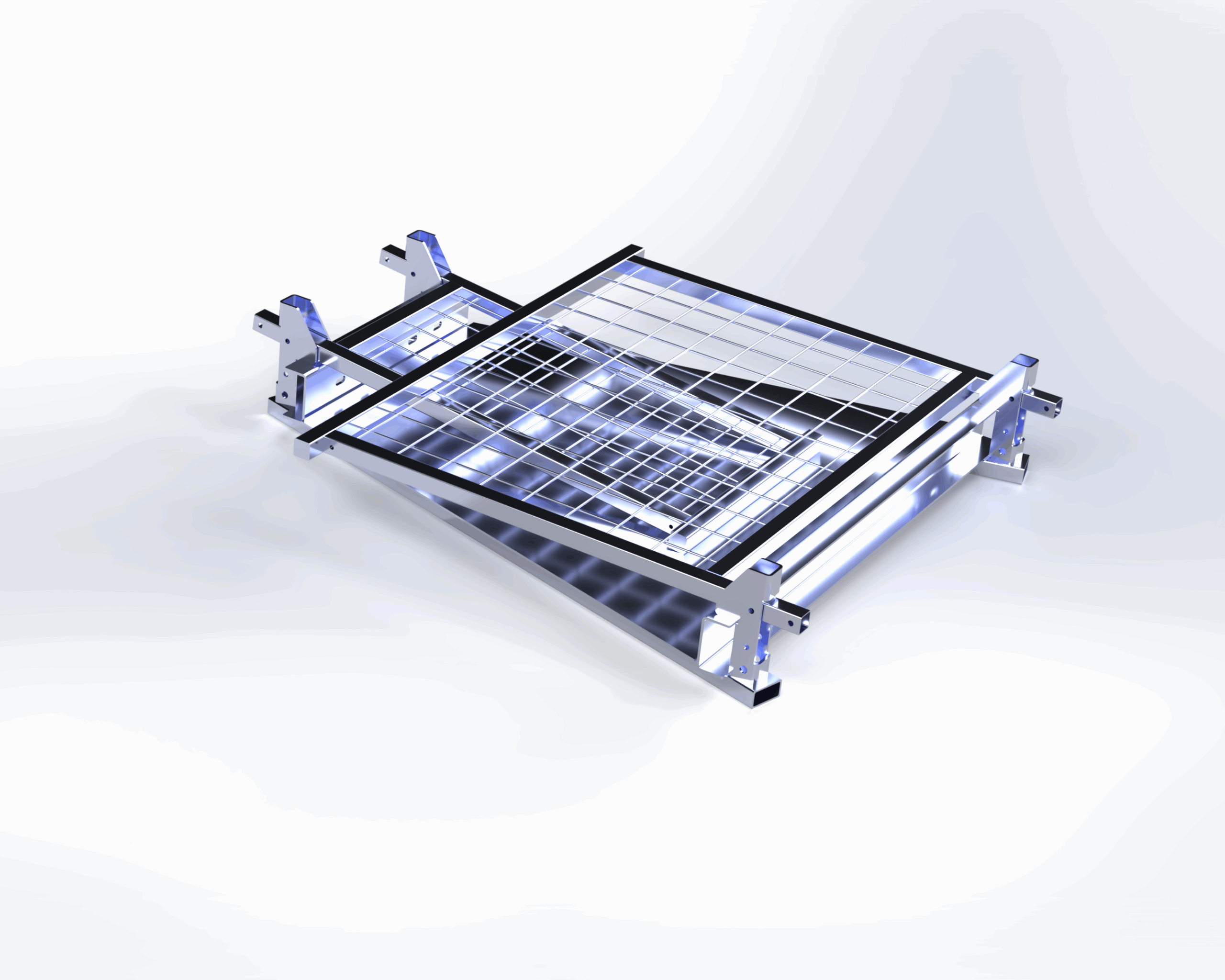

The Falpro – Bridge deck corner module can be attached to our Falpro – Multipurpose Bridge to enable curved guidance. A Falpro – Corner module has a curved angle of 30°, i.e. two corner modules give you 60° and three Corner modules give you 90°. The Falpro – Corner module can be attached on the left or right side.
Article No. : 61075
Weight : 31.00 kg
Article No. : 61076
Length : 176.00 cm
Width : 16.00 cm
Weight : 16.00 kg
Article No. : 61077
Article No. : 61078
Length : 26.00 cm
Width : 16.00 cm
Weight : 3.10 kg
Article No. : 61075
Weight : 31.00 kg
Type : AP 250
Article No. : 61001
Length : 1,45 – 2,50 m
Type : AP 350
Article No. : 61002
Length : 1,95 – 3,50 m
Type : AP 480
Article No. : 61003
Length : 2,68 – 4,80 m
Type : AP 625
Article No. : 61004
Length : 4,30 – 6,25 m
Type : AP 50
Article No. : 61001
Length : 0,40 – 0,55 m
Article No. : 61099
Width : 0,12 m
Length : 0,20 m
Weight : 1.00 kg
Material : Galvanized Steel
Article No. : 61079
Length : 11.00 cm
Width : 11.00 cm
Height : 10.00 cm
Weight : 1.20 kg

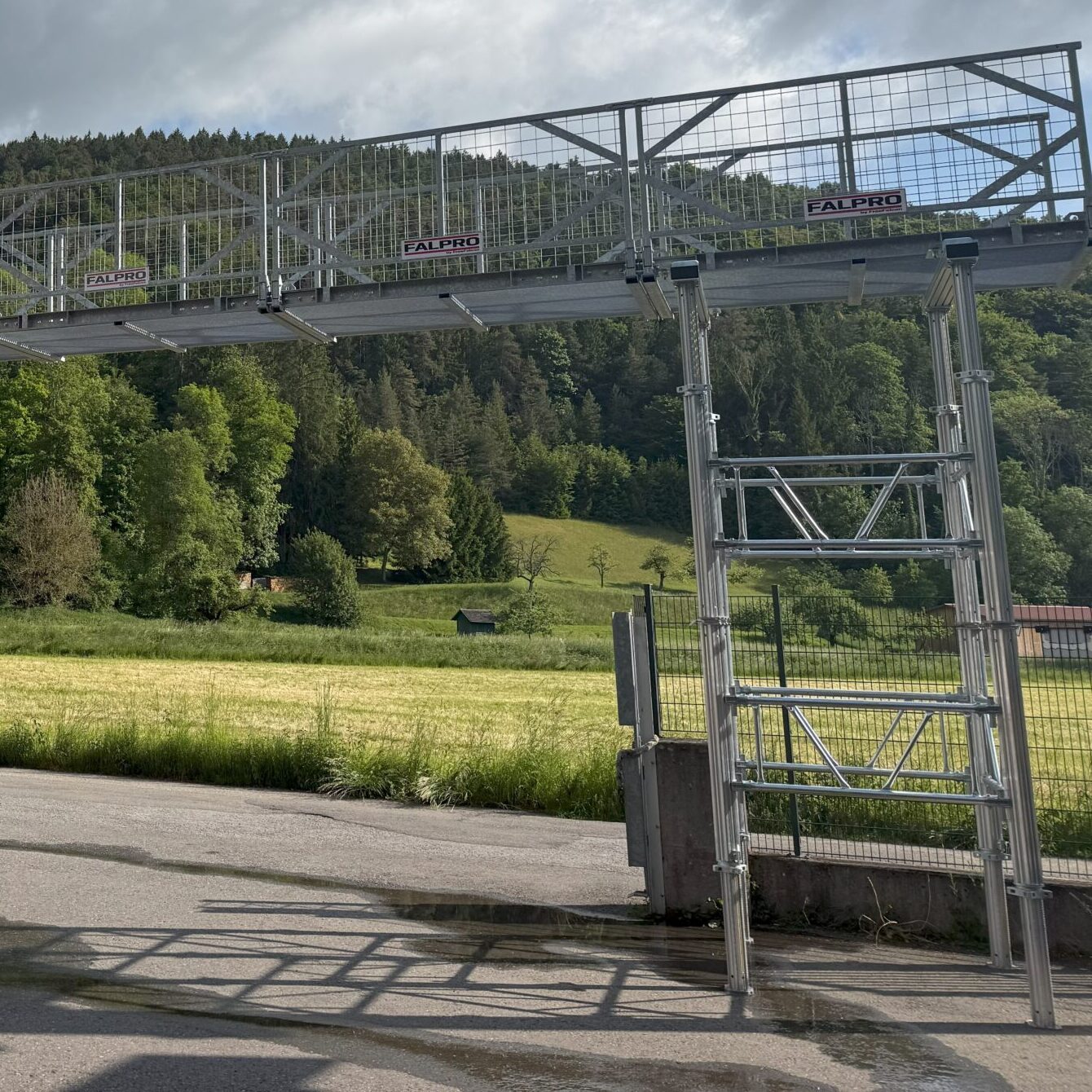

For large clearances, such as temporary road bridges or large areas of uneven terrain, these individual modules of our Falpro – Multipurpose Bridge can be lifted and extended indefinitely by means of supports along their entire length with the a maximum distance of 13.00 m between the support points . These supports are installed using the Cross Beam Set, which is compatible with any load-bearing tower. However, for optimal stability and reliability, the use of the Falpro Load Bearing Tower is strongly recommended.

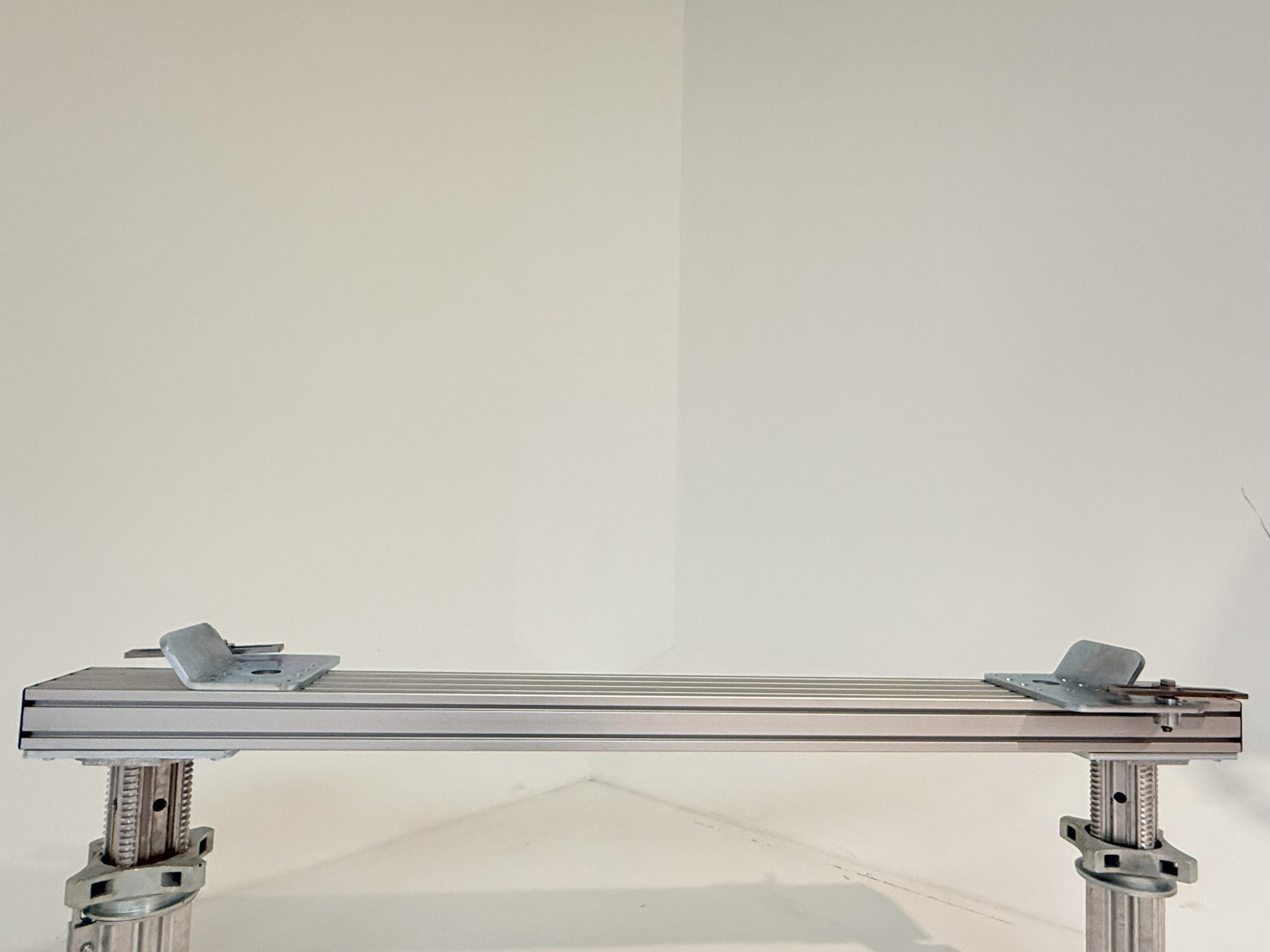

The Falpro Load Bearing Towers are specifically engineered to serve as the substructure for the Falpro Multipurpose Bridge. Lateral securing of the load-bearing towers is always required to ensure stability. Each tower consists of a connecting frame and four interchangeable aluminium props, selected based on the required height and load capacity. For fine height adjustment, a spindle prop head can be used, while an adapter plate allows multiple load-bearing towers to be stacked. Additionally, the anchor plate provides lateral stabilization, securing the sides of the load-bearing tower for safe and reliable operation.
Article No. : 61120
Height : 101,00 cm
Weight : 8,30 kg
Article No. : 71004
Length : 48,00 cm
Weight : 4,10 kg

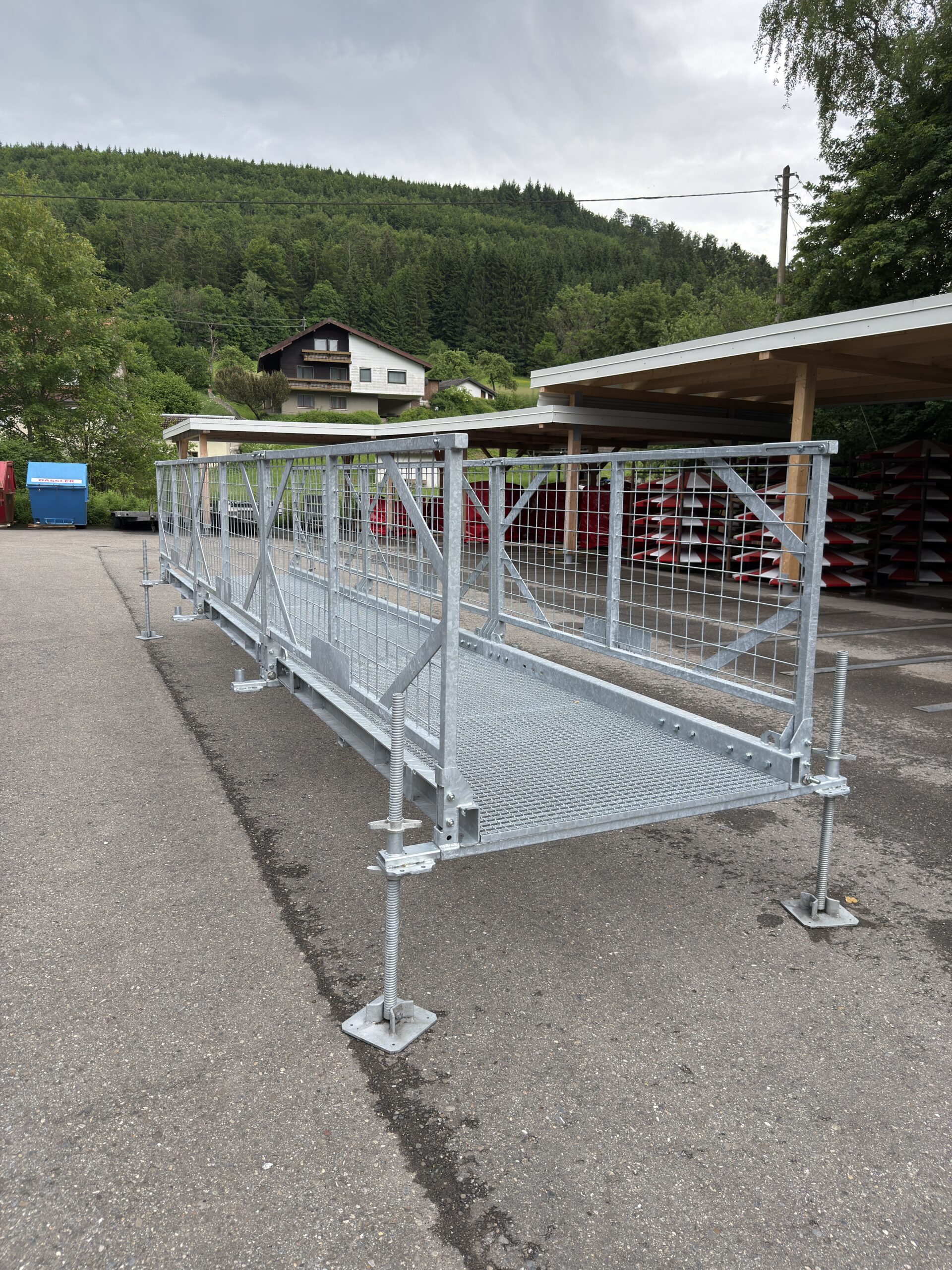

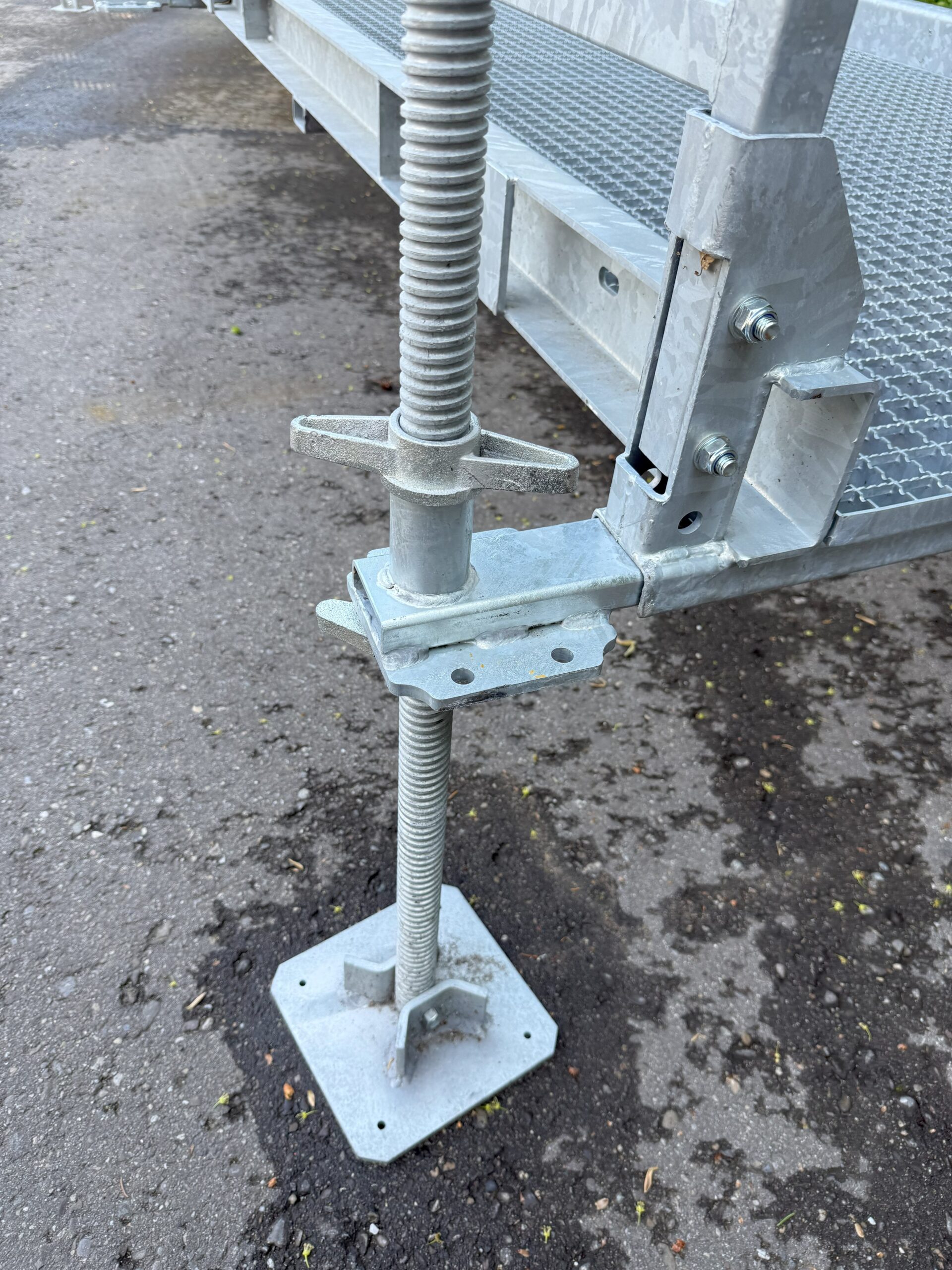

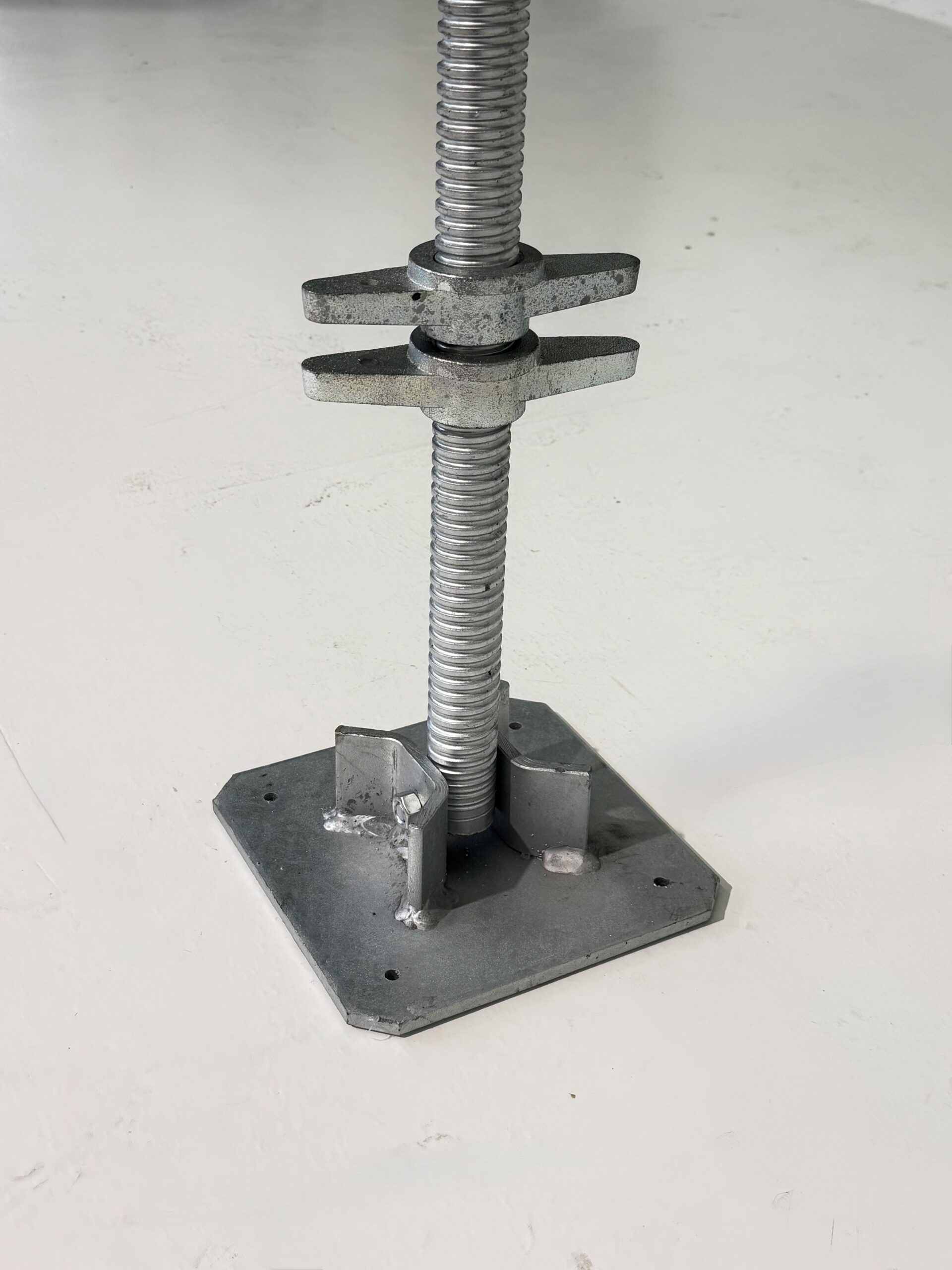

Our Falpro – Connecting elements and Spindle feet were designed for low clearance heights of up to 70 cm, such as stream crossings or minor uneven terrain. These individual modules of our Falpro – Multipurpose Bridge can be extended indefinitely by means of supports along the entire length. When planning the support using our Falpro – Spindle feet, a maximum distance of 10.00 m between the support points must be maintained.
Article No. : 71050
Weight : 31.00 kg
Article No. : 71075
Weight : 5,63 kg
Article No. : 71101
Total Length : 2,50 m
Total Width : 1,50 m
Total Height : 1,24 m
Usable area : 1,26 x 2,50 m
Dead Weight : 230,00 kg

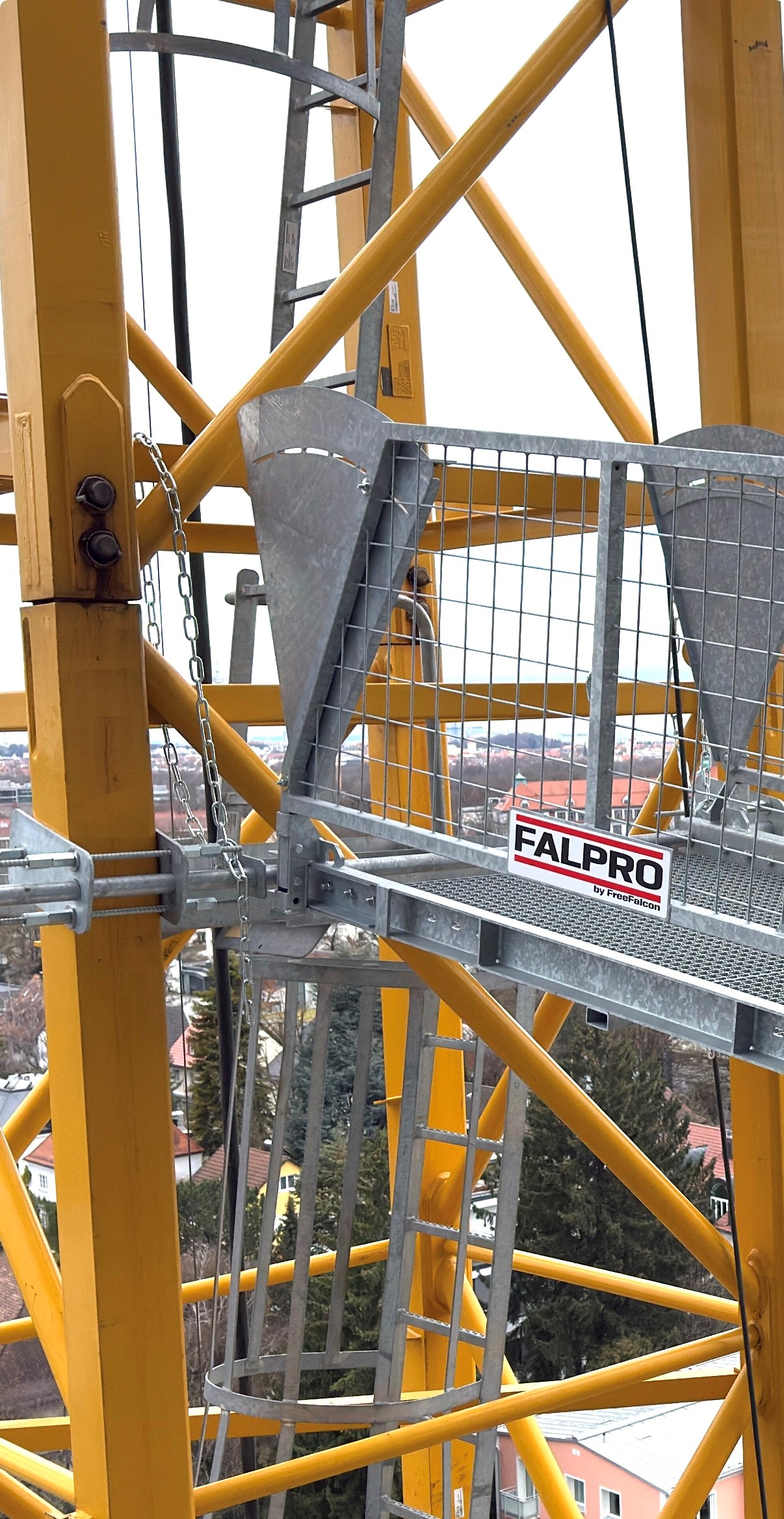

Working on a crane has always presented significant occupational safety challenges. First, there is the issue of restroom access, and second, in the event of a medical emergency, it has traditionally been difficult for a crane operator to receive timely assistance until now. The same applies to the issue of height rescue. If a crane operator had health problems, it was extremely difficult to rescue the person concerned. Around 90% of standard cranes are located close to buildings, and very tall tower cranes must be positioned near structures to ensure stability through anchoring. This proximity creates an opportunity to greatly improve both occupational safety and height-rescue procedures through the use of our Multipurpose Bridge.

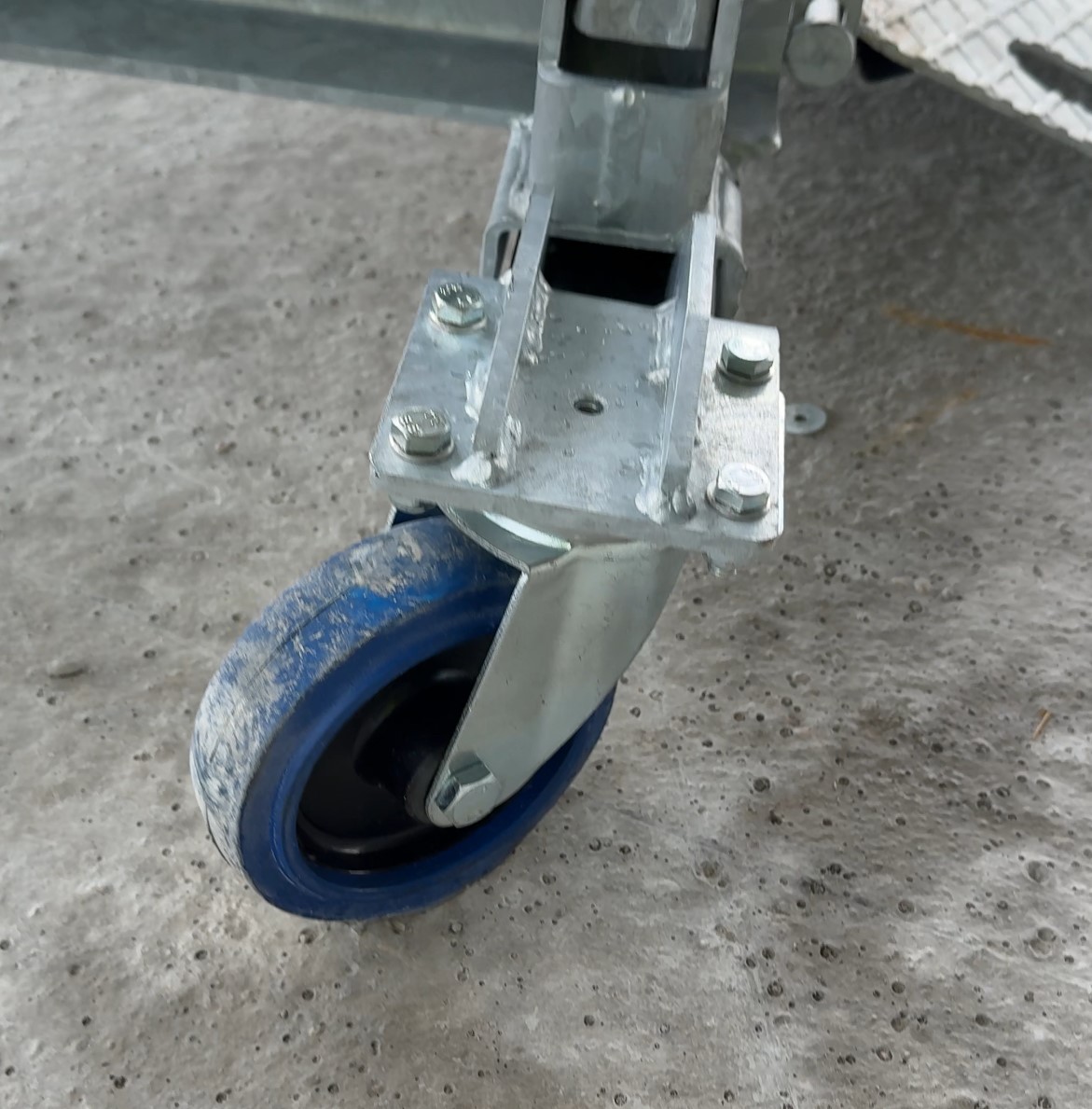

The Multipurpose Bridge is secured with a specially developed crane connection set that can be individually adjusted for any crane model. On the building side, a pendulum compensator with a wheel automatically adjusts to movements caused by crane vibrations. Thanks to its design, the Multipurpose Bridge can also be moved or repositioned quickly and with minimal effort.
Article No. : 71004
Length : 2,49 m
Width : 0,50 m
Weight : 8,00 kg
Material : Aluminium
The Falpro Multipurpose Bridge Cover Plate is a durable, easy-to-install accessory that creates a flat, secure surface over the bridge’s grated design. It improves safety and comfort for pedestrians—especially those wearing heels—and provides a smooth, obstacle-free pathway for dogs and other animals. Designed for seamless integration, the cover plate enhances accessibility and usability across a range of temporary crossing applications, including construction sites, events, and disaster relief, while delivering reliable long-term performance.
Article No. : 71003
Length : 1,30 m
Width : 0,30 m
Weight : 16,50 kg
Material : Steel

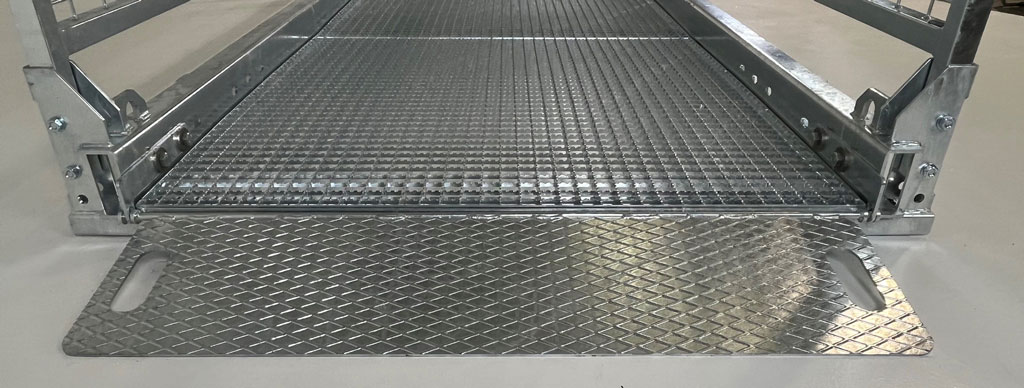

The Falpro Multipurpose Bridge Drag Plate is a durable, user-friendly ramp designed to integrate seamlessly with the Falpro Multipurpose Bridge. It provides a smooth, stable transition for pedestrians, wheelchair users, and wheeled equipment, improving overall accessibility and functionality. Its gradual incline supports mobility needs and facilitates equipment movement, making it valuable for construction, events, disaster relief, and other temporary crossing applications. Built from high-quality materials, the drag plate offers long-term reliability and enhances the bridge system’s versatility and usability.
Introducing the Falpro Multipurpose Bridge, a versatile and reliable solution for safely traversing obstacles and challenging terrain. This innovative bridge is designed to provide a secure passage for pedestrians and wheelchair users, making it an ideal choice for a wide range of applications.
Whether it’s navigating construction sites, overcoming environmental disasters such as flooding or landslides, or facilitating temporary crossings during road works, concerts, or exhibitions, the Falpro Multipurpose Bridge is up to the task. Its adaptable design allows it to be used in almost any setting where a temporary, safe crossing is required.
One of the key features of the Falpro Multipurpose Bridge is its impressive load capacity. With a load capacity of 400.00 kg per m² and a total load capacity of 600.00 kg for a complete bridge, it offers exceptional strength and stability. This makes it suitable for accommodating a variety of users and equipment, ensuring safe passage for all.
In addition, the bridge’s modular design allows for easy assembly and customization to suit specific requirements. For assemblies of more than 4 trench bridge modules, a 13.00 m aluminum profile beam is required, providing flexibility and scalability for larger projects. This adaptability makes the Falpro Multipurpose Bridge a practical and efficient solution for a wide range of crossing needs.
Transporting the bridge is made convenient with its foldable guard rails, which allow for easy stacking of multiple modules. This space-saving feature enhances the portability of the bridge, making it simple to transport and store when not in use. Whether it’s for temporary installations or ongoing projects, the Falpro Multipurpose Bridge offers practicality and ease of use.
The durability and reliability of the Falpro Multipurpose Bridge make it a valuable asset for various industries and applications. Its robust construction ensures long-term performance, even in challenging environments. With a focus on safety and accessibility, this bridge provides a dependable solution for overcoming obstacles and creating secure pathways in diverse settings.
Furthermore, the bridge’s pedestrian and wheelchair user-friendly design emphasizes inclusivity, making it suitable for accommodating individuals with diverse mobility needs. This commitment to accessibility ensures that the bridge can be utilized in a wide range of public and private settings, promoting equal access and safe passage for all.
In summary, the Falpro Multipurpose Bridge is a versatile and dependable solution for addressing temporary crossing needs in diverse environments. With its high load capacity, modular design, and convenient transport features, it offers practicality and efficiency for a variety of applications. Whether it’s for construction, disaster relief, event management, or other industries, the Falpro Multipurpose Bridge is designed to meet the demands of modern infrastructure and temporary crossing requirements.
The adaptability and versatility of the Falpro Multipurpose Bridge make it a valuable asset for organizations and projects that require safe and secure passage over obstacles. Its ability to be deployed in various settings, combined with its robust load capacity and inclusive design, positions it as a reliable solution for addressing temporary crossing needs.
With a focus on safety, accessibility, and practicality, the Falpro Multipurpose Bridge offers peace of mind and convenience for project managers, event organizers, and disaster response teams. Its ability to provide a safe and secure passage over challenging terrain ensures that individuals, equipment, and materials can be transported with confidence, even in the most demanding conditions.
In conclusion, the Falpro Multipurpose Bridge represents a commitment to innovation and practicality in addressing temporary crossing requirements. Its robust construction, high load capacity, and inclusive design make it a versatile and reliable solution for a wide range of applications. Whether it’s for construction sites, disaster relief efforts, event management, or other temporary crossing needs, the Falpro Multipurpose Bridge sets a new standard for safety, accessibility, and efficiency.
The Falpro Multipurpose Bridge Optional Drag Plate is a versatile addition to the Falpro bridge system, designed to provide a smooth and seamless transition for users and equipment. This ramp serves as a convenient extension to the Falpro Multipurpose Bridge, offering enhanced accessibility and functionality for a wide range of applications.
With its user-friendly design, the Optional Drag Plate seamlessly integrates with the Falpro Multipurpose Bridge, creating a cohesive and inclusive pathway for pedestrians, wheelchair users, and equipment. Its purpose-built construction ensures a secure and stable transition, allowing for effortless movement across the bridge and onto the optional drag plate.
The drag plate’s gradual incline make it an ideal solution for accommodating individuals with mobility challenges, as well as facilitating the movement of wheeled equipment. Its compatibility with the Falpro Multipurpose Bridge enhances the overall accessibility and usability of the bridge system, making it suitable for a diverse range of temporary crossing needs.
In addition to its functional benefits, the Optional Drag Plate is designed with durability and reliability in mind. Constructed with high-quality materials, it is engineered to withstand regular use and provide long-term performance, ensuring that it remains a dependable component of the Falpro bridge system.
The seamless integration of the Optional Drag Plate with the Falpro Multipurpose Bridge reflects a commitment to enhancing accessibility and usability in temporary crossing solutions. Whether it’s for construction sites, event management, disaster relief efforts, or other applications, the drag plate offers a practical and efficient way to extend the functionality of the Falpro bridge system.
In summary, the Falpro Multipurpose Bridge Optional Drag Plate is a valuable addition to the Falpro bridge system, providing a smooth and accessible transition for users and equipment. Its user-friendly design, durability, and seamless integration with the bridge system make it an essential component for addressing the temporary crossing needs of diverse industries and applications.
