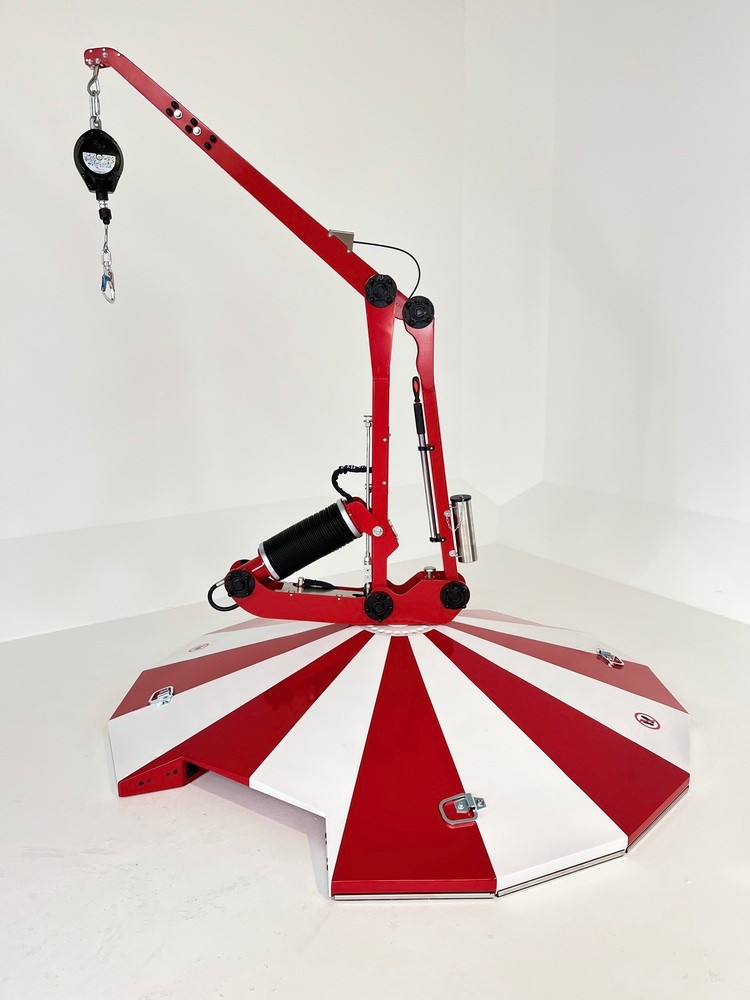

Falpro – Mobile Fall Protection Anchor V21-1

for attaching tested, personal protective equipment (PPE)
ANSI Z359.18-2017 type D, AS/NZS 5532:2013, DIN EN 795:2012 type E

Specifications & intended use:

Thanks to the physical force of leverage and the latest safety technology, it provides optimum protection when working at any height. The FreeFalcon – mobile anchor mast V21-1 is suitable for use on smooth surfaces such as slab formwork. It has to be lifted only once on to a site with a crane and can then be transported by means of a standard pallet truck. Optimum radius of action due to an overhead anchorage and a ball-bearing housing.

Weight 505.00 kg
Anchor point height in the default state 235.00 cm
Anchor point height in safety position 115.00 cm
Lowest base diameter 208.00 cm
Largest base diameter 225.00 cm
Anti-slip segments 12 pieces
Sliding friction μ 0.65 µ +/- 5 %
Pressure force of the safety unit min. 29050 N max. 30327 N
Triggering time of safety unit min 1.5 sec. max 2.0 sec.
Lashing rings 4 pieces 4000 N each
Trigger force of the safety device 1.1 – 1.5 kN Exceeding

Product information:

Working radius
Trigger force of the safety device
10100 up to 10,00 m 505,00 kg max. 225,00 x 235,00 cm 1,1-1,5 kN
