SAFETY TECHNOLOGY

Falpro – Wall mounted guard rail posts

Description:

The Wall mounted guard rail post provides a temporary fall protection and is suitable for use with the Falpro – protective barrier (Art.-No.: 13201 + 13202), formwork boards and timber boards.

The boards are placed on a hexagonal spacer nut (Art. No.: 13010) in the corresponding holes and can be screwed tight with wood screws or nails. 2 spacer nuts are supplied per post.

The Wall mounted guard rail posts are identical in construction, i.e. they can be mounted on the right or left side.

They are fastened to or inside an opening (such as elevator shafts, doors, etc.) with an HexHead concrete screw bolt (Art. No.: 13096 – 13099).

Product information:

Art.-NO.:
Material
Length
Width
Height
Weight
13001 Stainless steel 4,00 cm 4,00 cm 122,00 cm 3,50 kg
13002 Steel galvanized 4,00 cm 4,00 cm 122,00 cm 3,90 kg

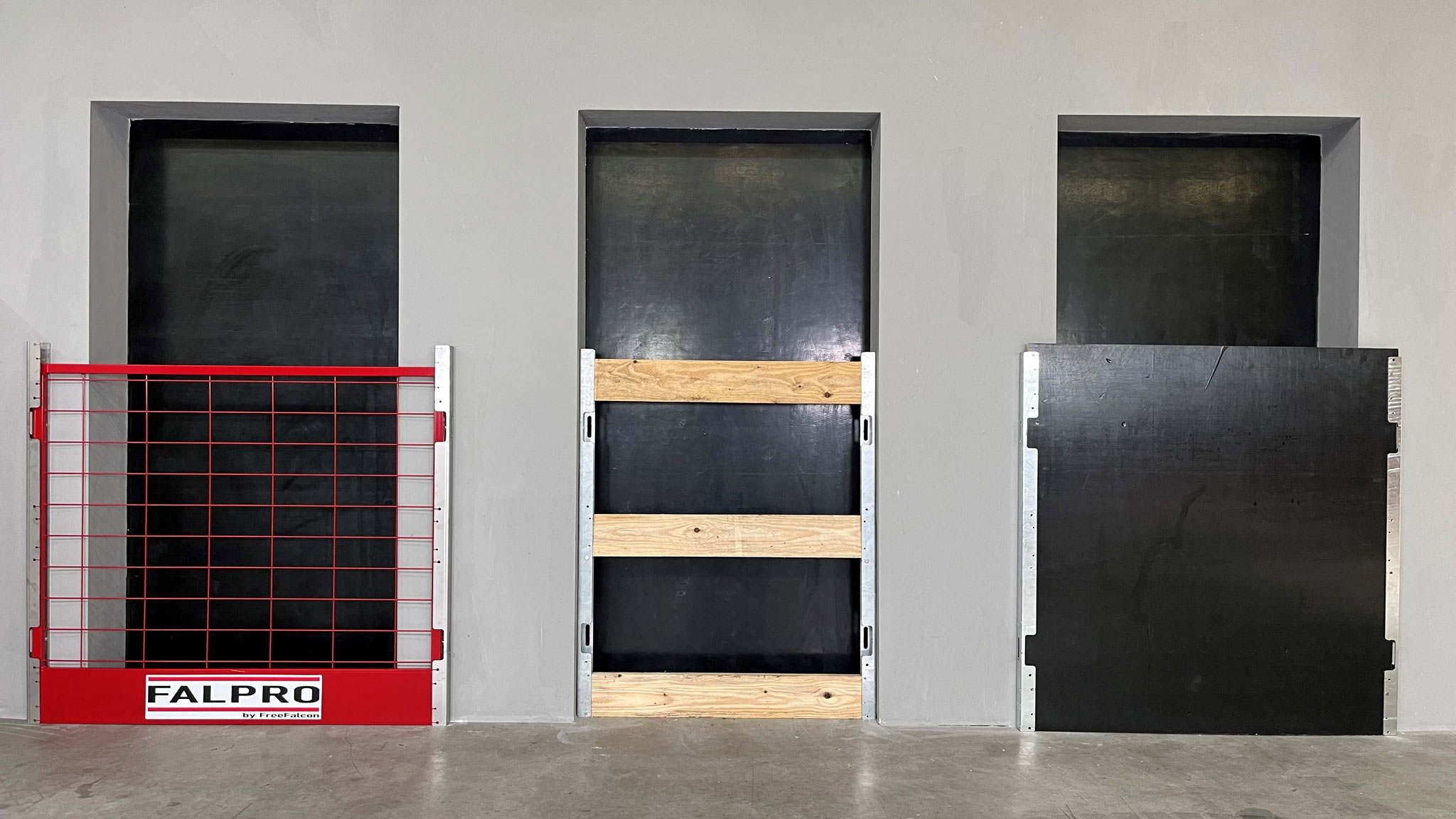

Application example:

Accessories

Falpro – Spacer nut hexagonal

Product information:

Art.-NO.:
Material
Length
Diameter
Weight
13010 galvanized steel 3,00 cm 0,80 cm 0,0139 kg

Falpro – HexHead concrete screw bolt FS

Description:

The HexHead concrete screw bolt FS is inserted directly into a pre-drilled hole in the concrete wall using an impact screwdriver.

It is completely dismountable and reusable.

Product Information:

Art.-NO.:
Material
DIAMETER
LENGTH
WEIGHT
13096 Carbon steel 12 mm 60 mm 25 pieces / pack
13097 Carbon steel 12 mm 80 mm 25 pieces / pack.
13098 Carbon steel 12 mm 100 mm 25 pieces / pack.
13099 Carbon steel 12 mm 120 mm 25 pieces / pack.
